SA2100 Class S Power Quality Analyzer

Overview

SA2100 is a handheld multi-functional device which is designed to measure and analyze single or three-phase power system. This portable class S device can provide safe, convenient and accurate measurements for troubleshooting power networks.

Detail

SA2100 Portable Power Quality Meters

Portable Power Quality Meters enable electricians and facility maintenance professionals to troubleshoot and benchmark power quality problems over time. They help you identify energy waste in your facility and detect and prevent power problems before they occur.

Why do you need Power quality meter analyzer?

Portable Power Quality Meter identifies power quality problems that often manifest themselves as dips, spikes, harmonic distortion, imbalances, flicker and transients.

Power quality determines the suitability of electrical energy to drive motors, machines and other end-user equipment.

Poor power quality can affect the ability of these devices to operate properly, which can lead to malfunctions, premature failures or possibly cause them to not work at all.

Most power quality analyzers monitor total harmonic distortion, phase angle, power factor, balance, etc. to get a complete picture of the system.

Application

Whether you’re a power engineer, facility manager, or industrial professional, our analyzer provides a comprehensive set of tools to diagnose, troubleshoot, and optimize your power systems.

Widely used in: Electrical power, medical, transportation, telecommunication, other industrial areas

Design Features

Basic voltage measurement accuracy of±0.5%

1-50th harmonic display

Support dynamic measurement such as Inrush, Flicker and Transients.

10 kinds of language are available to select

Powerful logger function

Measurement Modes

1. Scope – View the voltage/current waveform and readings. Cursor Zoom function.

SA2100 Class S Power Quality Analyzer

2. Dips & Swells – Capture the abnormal Event, such as Swells, Dips, Interruptions and Rapid Voltage change

SA2100 Class S Power Quality Analyzer

3. Unbalance – Check the unbalance in 3 phases based on IEC61000-4-30 standards

SA2100 Class S Power Quality Analyzer

4. Transients – Capture waveforms at high-resolution during a variety of disturbances, maximum 100 events, sample rate 20Ks/s

SA2100 Class S Power Quality Analyzer

Equipped with advanced features, our Power Quality Analyzer is the epitome of accuracy and reliability. Uncover hidden anomalies, harmonics, voltage fluctuations, and transients that may impact the stability and efficiency of your power infrastructure. Pinpoint issues swiftly and take proactive measures to maintain optimal power quality.

Our Power Analyzer Meter offers an intuitive interface and user-friendly design, allowing you to effortlessly navigate through the complexities of power monitoring. Gain real-time insights, visualize waveforms, and analyze comprehensive reports to make informed decisions and drive performance improvements.

Power Quality Monitoring is made effortless with our advanced system. Stay informed about voltage fluctuations, harmonics, power factor, and more. Detect potential issues before they escalate, ensuring uninterrupted operations and mitigating the risk of equipment damage or downtime.

Power Quality Meters are essential tools for any industry. Our Power Quality Analyzer provides precise and accurate measurements, enabling you to meet regulatory standards, identify power inefficiencies, and optimize energy consumption. Take control of your power systems with Suin.

Unleash the potential of your power infrastructure, optimize energy consumption, and drive performance excellence with Suin. Trust in our expertise to ensure a reliable and efficient power supply. Power your success with Suin Digital Power Quality Analyzer!

Finding and solving power quality problems

As with any troubleshooting task, you need the right tools to get the job done. Power quality analyzers identify power quality problems, which often manifest themselves as dips, spikes, harmonic distortion, imbalances, flicker and transients. Power quality determines the suitability of electrical energy to drive motors, machines and other end-user equipment. Poor power quality affects the ability of these devices to operate properly, which can lead to malfunctions, premature failures or possibly cause them to not work at all. Most power quality analyzers monitor total harmonic distortion, phase angle, power factor, balance and more to get a complete picture of the system. Capturing the data needed for troubleshooting is the first step in solving these power quality problems, and the SUIN SA2100 Power Quality Analyzer and Meter will help you track and identify voltage anomalies and harmonic distortion problems – even the most difficult to find.

Troubleshoot to get answers

When there’s a problem with your AC power system, you need to find it in time; SUIN’s three-phase power meter will quickly provide the answers you need to make things work. This three-phase meter can be used for troubleshooting to help you find answers immediately; or as a benchmarking tool to discover trends in your power quality over time. Simply connect and view the health of your power system digitally or graphically, then record the data and share it with colleagues or consultants via screenshots, charts or reports. the SUIN power quality meter will provide you with all the answers you need to solve power quality problems quickly and efficiently.

Questions & Answer From SA2100 Class S Power Quality Analyzer

Q: What is the IEC61000-4-30 standard for power quality analyzer?

A: IEC61000-4-30 published by International Electrotechnical Commission (IEC) is an international standard that specify how power quality instruments should make measurements. Also it defines the exact measurement algorithms methods for power quality parameters such as power quality voltage, flicker, unbalance, harmonic, etc.

Currently the latest version of the standard is IEC61000-4-30, Edition 3 which was published in 2015.

There are two classes defined in this standard-Class A and Class S, Suin SA2100 power quality analyzer is classified to Class S instrument, of which accuracy and performance requirements are not as strict as Class A.



Q: Does standard SA2100 include current clamps? Is the current clamp can support DC measurement?

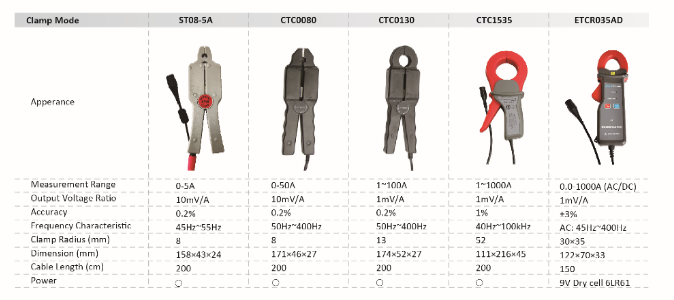

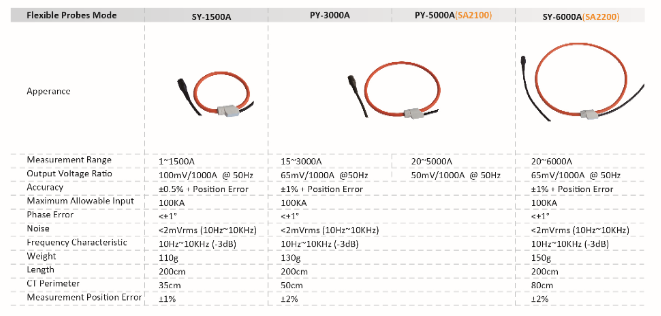

A: Usually the standard quotation of SA2100 contains 4pcs rogowski coils PY-3000A. To meet different measurement needs, additional 5 types current transformer clamps-ST08-5A, CTC0080-50A, CTC0130-100A, CTC1535-1000A, ETCR035AD-1000A and 3 types rogowski coils-SY-1500A, PY-5000A and SY-6000A are supplied as option for user selection. While ETCR035AD-1000A can support AC/DC measurement, other types are only available for AC measurement.

Specification

Measurement Range Resolution Accuracy
Voltage/Current/Frequency
Vrms(AC+DC) 1~ 1000Vrms 0.1Vrms ±0.5% of nominal

voltage

Vpk 1 ~ 1400Vpk 0.1Vpk ±0.5% of nominal

voltage

V(Crest Factor) 1.0 ~>2.8 0.01 ±5%
Arms (AC) 10mV/A 0 ~ 100A 0.1A ±0.5%±0.2A
1mV/A 1~1000A 0.1A ±0.5%±0.2A
50mV(65mV)/1000A 15~5000A 1A ±1%±2A
A(Crest Factor) 1~10 0.01 ±5%
Frequency 42.5 ~ 57.5Hz

(50Hz nominal)

0.01Hz ±0.01Hz
51 ~ 69Hz

(60Hz nominal)

0.01Hz ±0.01Hz
385~414Hz

(400Hz nominal)

0.01Hz ±0.1Hz
Dips & Swells
Vrms1/2 0   ~ 200% of

nominal voltage

0.1Vrms ±1%
Arms1/2 1 ~ 3000A 1A ±1%±2A
Duration hour-minute-

second-

microsecond

0.5 cycle 1 cycle
Harmonic(IEC61000-4-7)
Harmonic Number 1 ~ 50
Harmonic Voltage %f 0.0 ~ 100.0% 0.10% ±0.1%±nx0.1%
Harmonic Current %f 0.0 ~ 100.0% 0.10% ±0.1%±nx0.1%
THD 0.0 ~ 100.0% 0.10% ±2.5%
Phase -360° ~ 0° ±nx1.5°
Power and Energy
Active Power/Apparent Power/Reactive Power 1.0 ~ 20.00MW 0.1kW ±1.5±10 digits
KWh 0.00kWh ~ 200GWh 10Wh ±1.5±10 digits
Power Factor 0 ~ 1 0.01 ±0.03
Flicker (IEC61000-4-15)
Pst(1min),Pst,Plt,PF5 0.00 ~ 20.00 0.01 ±5%
Unbalance
Voltage 0.0 ~ 5.0% 0.10% ±0.5%
Current 0.0 ~ 20.0% 0.10% ±1%
Voltage Phase -360° ~ 0° ±2digits
Current Phase -360° ~ 0° ±5digits
Voltage Transient
Vpk ±6000Vpk 1V ±15%
Vrms 10 ~ 1000Vrms 1V ±2.5%
Min. Test Time 50us
Inrush Current
Arms 0~3000Arms 0.1 ±1%±5digits
Inrush Duration 6s ~ 32min

selectable

10ms ±20ms
Logger
Recording user-defined parameters for 4 phases at the same time
Memory Data stored in Micro SD card, 8GB
Duration Time 2 hrs to 1 year, depends on the recording items

and time interval

Interval 1s to 1 hrs
Monitor
Support EN50160 in default or user-defined standard
Channel(Voltage/Current) 4/4
Voltage Range 1-1000Vrms, 6000V transient voltage
Current Range depends on supplied current clamp
Micro SD card(bulid-in) 8GB
Battery NI-MH, 3800Ah/>7h
interface USB Host, LAN
Screen 5.6′ TFT LCD with resolution320*240(SA2100)
Language 10-Chinese, English, French, German, Korean, Polish, Portuguese , Spanish,

Turkish,Russian

Dimension/Weight 262*173*66mm/1.6kg
Wire Combinatios 1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø

WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG,

2-ELEMENT, 2 1/2-ELEMENT

Electrical Safety IEC61010-1 ,Safety Degree: 600V CAT IV    1000V CAT III

Accessory

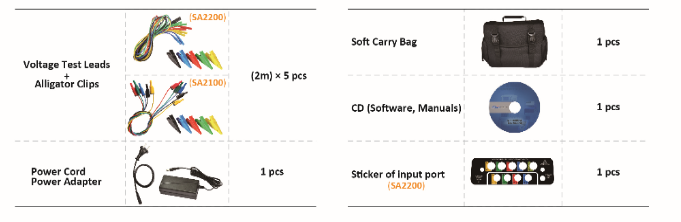

Accessories
